The AutoLISP program, that I have got, is not too complicated. You select a text, you enter a space, and lines are drawn around the text.
The AutoLISP Program
Here is the AutoLISP program. A text is selected, the spacing between the text and the liens are entered, and the lines are drawn.
(defun c:txtbx (/ ls et sp ls lg ip ht al)
(setvar "cmdecho" 0)
(setq ls (sssel)
et (nth 0 ls)
sp (nth 1 ls)
)
(setq ls (fndsz et)
lg (nth 0 ls)
ip (nth 1 ls)
ht (nth 2 ls)
al (nth 3 ls)
)
(drlns sp lg ip ht al)
(setvar "cmdecho" 1)
(princ)
)
(defun sssel (/ et sp)
(setq et (car (entsel "\nSelect text: "))
sp (getint "\nSpace around text: ")
)
(list et sp)
)
(defun fndsz (et / el ls p1 p2 lg ip ht al)
(setq el (entget et)
ls (textbox el)
)
(setq p1 (nth 0 ls)
p2 (nth 1 ls)
lg (- (car p2) (car p1))
ip (cdr (assoc 10 el))
ht (cdr (assoc 40 el))
al (cdr (assoc 72 el))
)
(list lg ip ht al)
)
(defun drlns (sp lg ip ht al)
(if (= al 4)
(setq ip (polar ip (* pi 0.5) (* ht 0.5)))
)
(setq ip (polar ip pi sp)
ip (polar ip (* pi 1.5) sp)
)
(command "line" ip
(setq ip (polar ip
0
(+ lg (* sp 2))
)
)
(setq ip (polar ip
(* pi 0.5)
(+ ht (* sp 2))
)
)
(polar ip pi (+ lg (* sp 2)))
"c"
)
)
(c:txtbx)
Three Functions
The TXTBX AutoLISP program works with three functions:
1. SSSEL
2. FNDSZ
3. DRLNS
The first function is for selecting a text and for entering the spacing between the text and the lines.
In the second function the sizes of the text are found. This is what is found:
- The length of the text
- The insertion point of the text
- The height of then text
- The alignment of the text
In the third function the lines are drawn around the text. There is a consideration for the spacing that has been entered.
The Alignment Of The Text
I must explain something about the alignment of the text. A text can have the following alignments:
- Left
- Center
- Middle
- Right
- Bottom left
- Bottom Center
- Bottom Right
- Middle left
- Middle Center
- Middle Right
- Bottom left
- Bottom Center
- Bottom Right
The alignment of the text can be found in the entry list of the text. It has the number 72. But it is no really important.
In the entity list the insertion point of the text is found. It is at the bottom left of the text. Except when the alignment is middle.
If the alignment of the text is middle then the insertion point is below the bottom left of the text. It is half the height lower.
You can see that the alignment of the text is middle. If is found in the entity list. There you find (72 . 4).
Look at the DRLNS function. In it is checked what the alignment of the text is. If it is 4, then the insertion point is adjusted.
How The AutoLISP Program Works
I think that is very clear. I do not have to explain how it works. Or let me talk about the TEXTBOX function.
You find the TEXTBOX function in the FNDSZ function. The entity list of the function is given to the function and a list is given back.
In the list are two points of the text. These points are the lower left point and the upper top point.
You can use the points to find the length of the text. That is done by using the CAR function on the points.
How It Looks

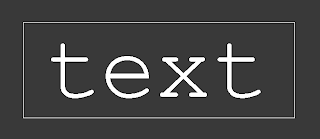

Here is how it looks after the AutoLISP program runs and the text has been selected. Lines are drawn around the text.
The text has been selected and for the spacing 2 is entered. See how it looks. But you can copy the file and see for yourself.
|
